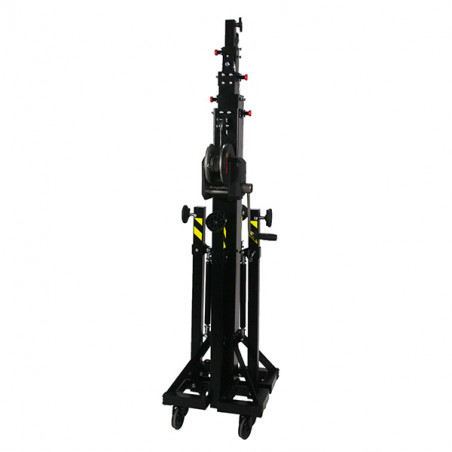

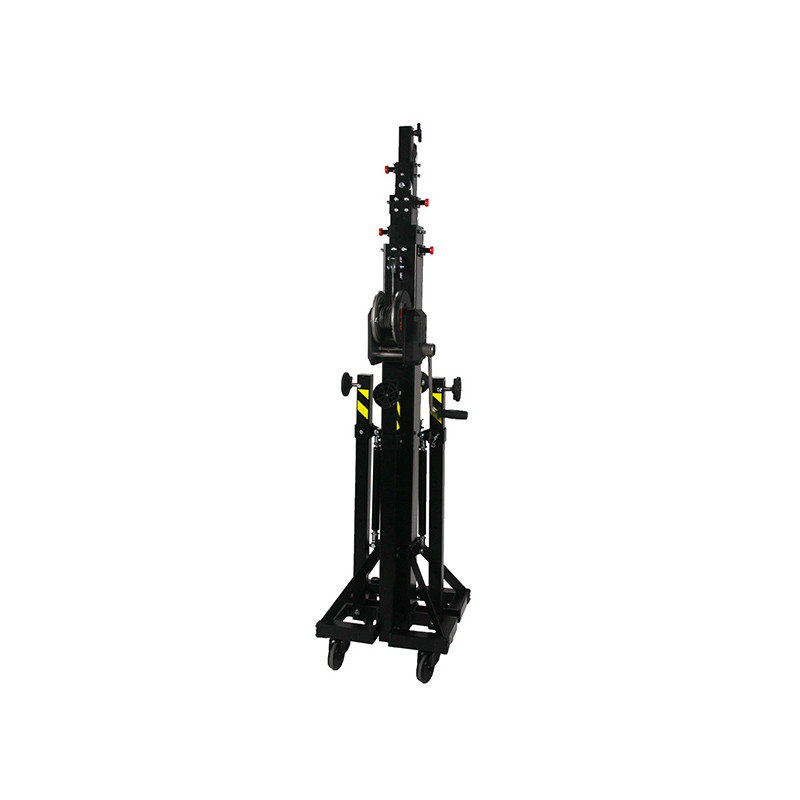

FENIX ELV-300/6 ELEVATORE TELESCOPICO

Telescopic lifting tower. ELV Series towers have a special ‘outrigger’ system that can work almost anywhere. Its leg tensioners allow installation at any angle, resting securely on any surface. The swing-arm plates guarantee stability of the tower.

Uses:
Ideal for indoor events, the adjustable leg system allows you to install the tower almost anywhere.

Features:
- Made of steel.
- Available colour: Black.
- It is well suited to any surface.

Technical specifications:
- Maxium height: 6,10m
- Height folded: 1,92m
- Maximum load: 300kg
- Minimum charge: 25kg
- Material: Galvanized steel under EN 10305-5.
- Workspace: 1,53 x 1,53m
- Closed base area: 0,49 x 0,49m
- Weight: 100kg
- Winch: AL-KO 901 Plus 900kg
- Cable: Galvanized steel under EN 12385-4.
- Maximum cable load: 2.150kg
- Cable twisting resistance : 1.770N/mm²
- Cable diameter: 6mm
- Cable composition: 7x19+0
- Security system: External trigger in sections
- Leg attachment: Safety pins
- Bubble level: to vertically adjust the tower.
