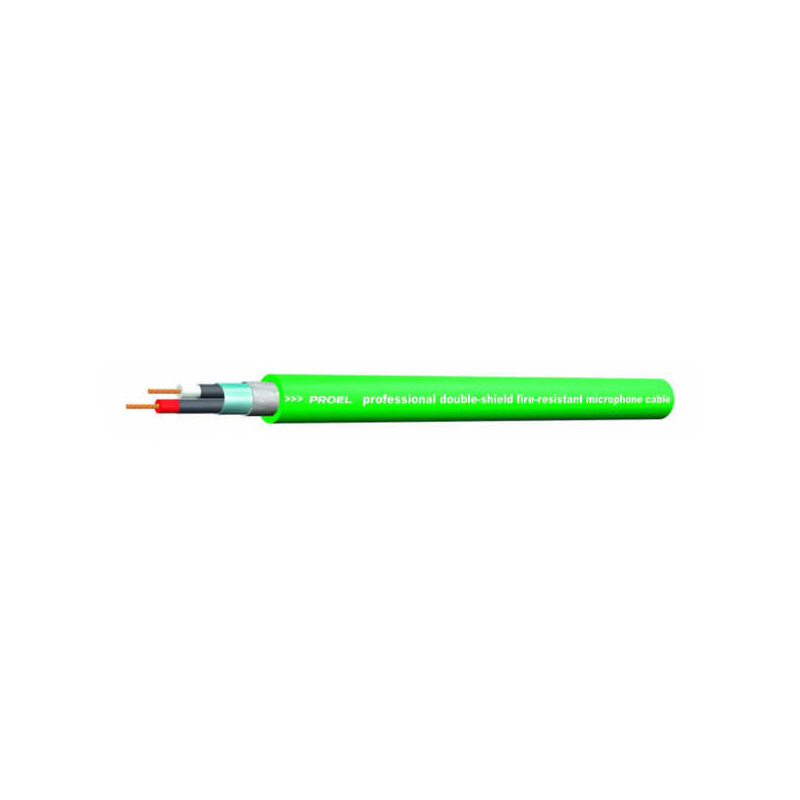

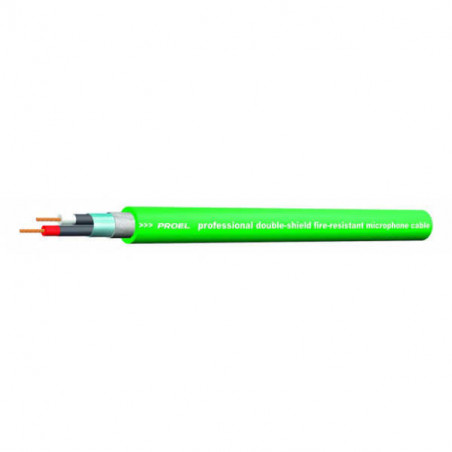

PROEL HPC210FR CAVO BILANCIATO A METRO

Cavo bilanciato per microfono con guaina esterna flessibile antifiamma particolarmente indicato per installazioni fisse. - O.F.C. (Oxygen Free Copper) - Sezione 2 x 0.34 mm2. Colore verde RAL6017

Specifiche Tecniche
Application fields: Installation / Recording studios / Microphone connections
Conductors: Bare copper 22 AWG = 19 x 0.15 mm (0.34 mm2)
Insulation: XLPE Ø 1.60 mm natural/red
Shield: Aluminium foil 100% / Tinned copper braid 90%
Jacket: Flexible fl ame resistant PVC Ø 5.60 mm / Complying with IEC 332.2 regulations
Color: Green RAL6017
Electrical resistance:< 62 Ohm/Km (conductor) @ 20°C
Electrical capacitance:
50 pF/m (conductor/conductor) @ 1 KHz
87 pF/m (conductor/shield) @ 1 KHz
Nominal impedance: 110 Ohm
Attenuation:
1 MHz = 1.60 dB/100 m
3 MHz = 2.80 dB/100 m
6 MHz = 4.00 dB/100 m
8 MHz = 4.60 dB/100 m
10 MHz = 5.10 dB/100 m
Velocity of propagation: 66 %
Operating temperature: -20°C / +80°C
Working tension:
< 50 V AC
< 75 V DC
Weight: 44 Kg/Km
