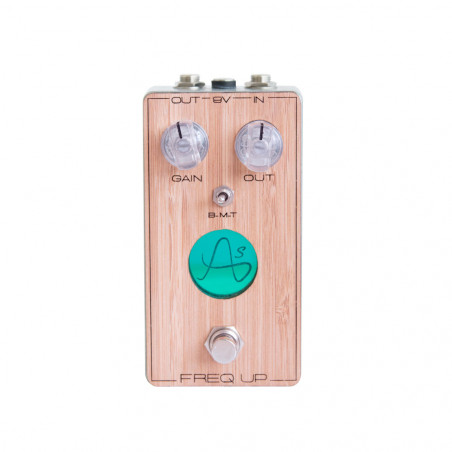

ANASOUNDS FREQ UP

This is a boost where we find at the same time a transparent and clean boost and a really typed and settable crunch.
In addition to that you have possibility to stay in the middle mode or to select the frequencies you want to add, so bass or trebles.
An internal setting allows to set the nature of the overdrive while at the same time, this is matching the whole chain between guitar and amplifier.

- Weight: 0.4 kg
- Dimensions: 11.8 x 6.4 x 5.9 cm
- external controls: eq, gain, out
- input impedance: 250 kO
- integrated circuits: opa texas instruments
- internal controls: light, od_bypass, voicing
- OPA dynamic: 9v
- output impendance: 11 kO
- power consumption: 6.7 mA
- supply: external 9v dc, negative polarity. hum and noise filter inside the pedal.
- switching: gold true bypass
- transistors: 2n5088
- wood: bamboo
