SHURE EZO/G

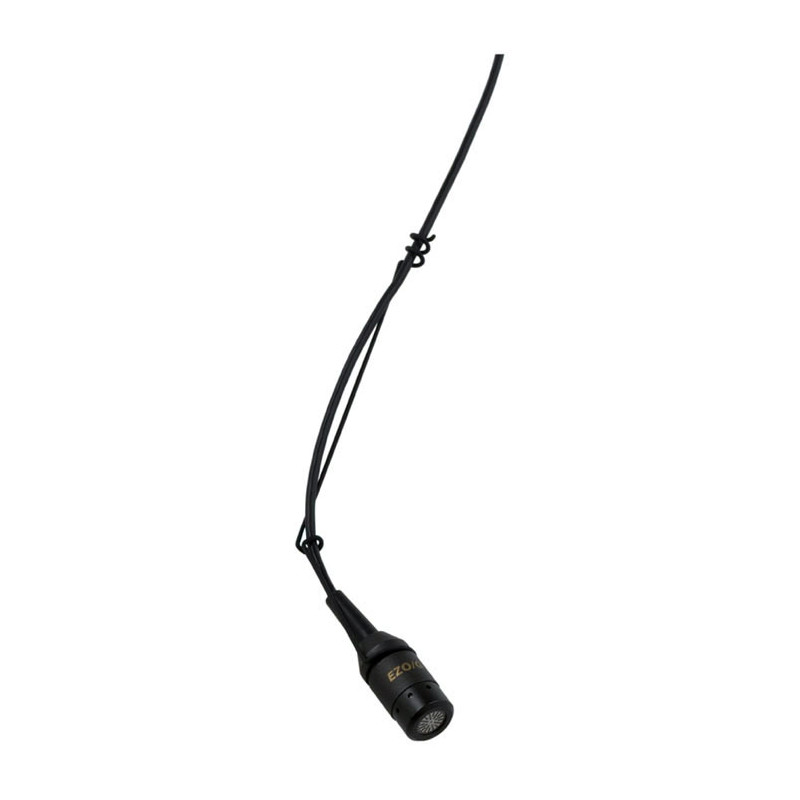

Shure EZO/G Cardioid Condenser Overhead Microphone
Use the Easyflex®EZO series miniature overhead microphones for choirs and performance groups in recording or sound reinforcement applications. These electret condenser microphones have a wide frequency range and high sensitivity. Designed for overhead suspension from a ceiling or other fixture, the attached wireform allows them to be easily aimed at the sound source.

Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
White or Charcoal Gray finish that blends unobtrusively with most surroundings
Flexible wire form for ease of aiming
In-line preamp reduces visible size of microphone
Slide on windscreen

Specifications

Frequency Response: 50 to 17,000 Hz
Polar Pattern: Cardioid
Output Impedance (at 1 kHz): EIA Rated at 150 Ohm (180 Ohm actual)
Open Circuit Sensitivity (at 1 kHz, ref. 1 V/Pascal*) -45.7 dB (5.19 mV)
*1 Pascal = 94 dB SPL
Maximum SPL (1 kHz at 1% THD, 1 kOhm load) 129 dB
Equivalent Output Noise (A-weighted): 29 dB SPL
Signal to Noise Ratio (referenced at 94 dB SPL): 65 dB
Dynamic Range at (1 kOhm load): 100 dB
Common Mode Rejection: 45 dB minimum
Preamplifier Output Clipping Level (1kHz @ 1%THD, 1kOhm load) -12.0 dBV (.25 V)
Polarity: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output connector.
Power Requirements: 11 to 52 Vdc phantom, 2.0 mA
Environmental Requirements
Operating Temperature Range: -18°C to 57°C (0°F to 135°F)
Relative Humidity: 0 to 95%
