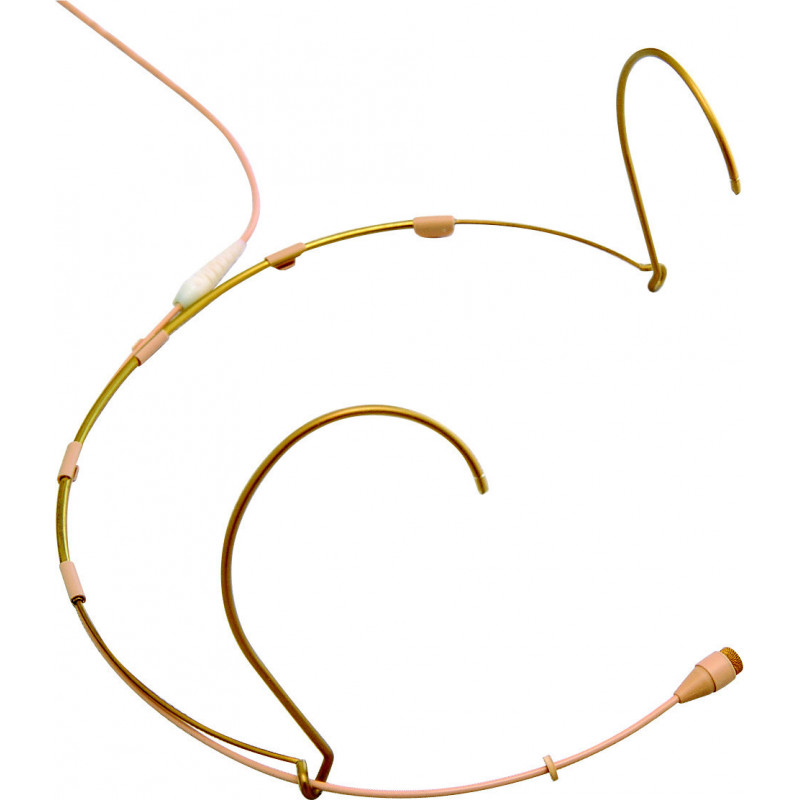

DPA 4066F

Microfono in miniatura con capsula tipo 4061, completo di sistema di montaggio tipo "Headband" ultraleggero per il posizionamento sulla guancia.

The main features of the DPA 4066-F include:High SPL capabilities for a miniature microphoneFlexible microphone used for speech and vocals in Broadcast, Stage and TelevisionPrinciple of operation: PressureCartridge type: Pre-polarised condenser element with vertical diaphragmPower supply: Min. 5 V - max 50 V through DPA adapterFrequency range, ±' 2 dB: Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz, High boost grid: 20 Hz - 20 kHz ±'2 dB, 10 dB boost at 12 kHzDirectional characteristics: OmnidirectionalEquivalent noise level A-weighted: Typ. 26 dB(A) re. 20 µ'Pa (max. 28 dB(A))Equiv. noise level ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)Total harmonic distortion (THD): <'1% THD up to 123 dB SPL peakPreamplifier frequency range: 20 Hz to 50 kHz (+0 dB/-3 dB)Output impedance: 30 - 40 OhmCable drive capability: Up to 300 m (984 ft)Microphone length: 12.7 mm (0.5 in)Max. SPL, peak before clipping: 144 dBWeight: <'14 g (0.5 oz) incl. cable and MicroDot connectorCable length: 1.2 m (3.9 ft)Cable colour: Beige Colour: Beige Dynamic Range: Typ. 97 dBS/N ratio, re. 1 kHz at 1 Pa (94 dB SPL): 68 dB(A) Connector: MicroDotSensitivity, nominal, ±'3 dB: 6 mV/Pa' 44.5 dB re. 1 V/Pa
