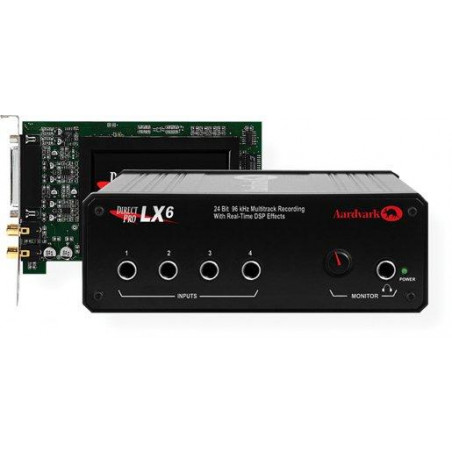

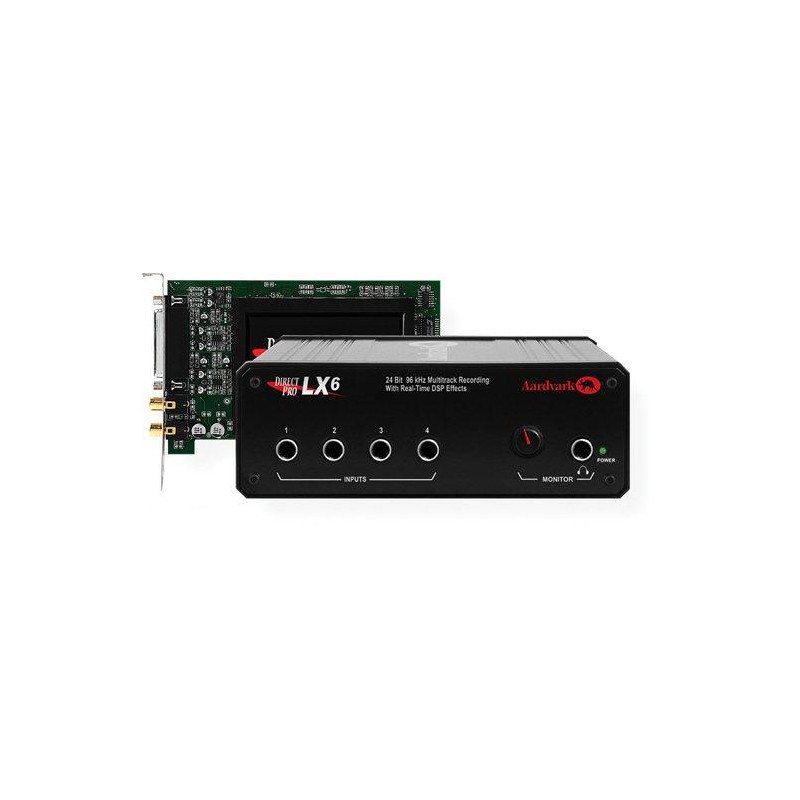

AARDWARK DIRECT PRO LX6

Aardwark Scheda audio PCI + Box Esterno.

Features
Real-time DSP effects: reverb, compressor, and 3-band EQ
4 line inputs
6 line outputs
24-bit 96kHz
24-bit S/PDIF
MIDI In/Out
Headphone output
Output level knob
DSP software mixer
Drag-n-drop patchbay
Peak metering
VU metering
+4dBu/-10dBv

Shielded PCI card
Simultaneous record/play

The LX6's DSP effects allow for monitoring with effects while recording without any latency, similar to monitoring with outboard effects processors. This latency is unavoidable when using plug-in effects or native software effects on input. Integrated within the powerful DSP mixing software, the DSP effects provide a real-time, high-quality recording environment that rivals the real-time performance of outboard compressors, 3-Band EQs, reverb units, and outboard mixers.

The DSP powered LX6 Control Panel mixer software provides many of the features of an automated digital mixer. It includes a Drag-n-Drop digital patch bay, digital peak metering, VU meters, Record FX switch, and Presets for snapshot recall of any setting on the entire Control Panel mixer. The LX6's superior sound quality comes from its low jitter clock, shielded 24-bit/96 kHz converters and uniquely shielded PCI card, all of which are specifically designed to keep out computer noise.

The front panel of the LX6 features (4) balanced
